La información e imágenes contenidas, pueden sufrir cambios sin previo aviso por motivos de actualización y mejora continua. Sin responsabilidad de quien los publica o los produce. / Las cantidades de empaques (cajas o atados) pueden cambiar.
$11,641.47 $9,032.17
.
CLAVE 23BOM045.
LINEA IVA00.
ALIAS WX10.
CLVPROV GX35.
CODIGO DE BARRAS .
Stock 3.
|

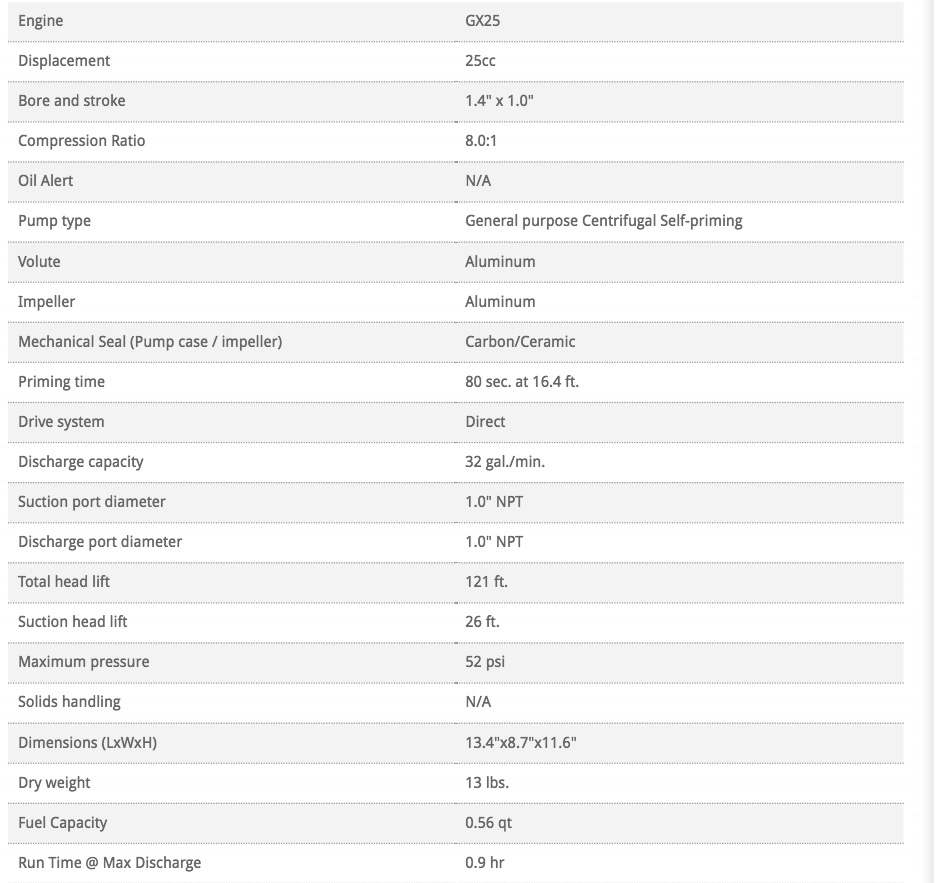

Engine |
GX25 |
|
Displacement |
25cc |
|
Bore and stroke |
1.4" x 1.0" |
|
Compression Ratio |
8.0:1 |
|
Oil Alert |
N/A |
aaaaaaaaaaaaataaaaataaaaaaaaMMeaaa'MaaBaaaaaaaaaaaaaaaaaaaaaaaeaaaaaaaaaaaaaaaeaaaaaaaaaaaaaaaaa<aaaaaaaaaaaaataaaaaaaaaaaa*aaaaaaaaasaaaaaeaaaaa>8Baaaaaaaaaeaaaaaaaaaaaaa•«aaaeaaaaaaaaaaaaaaaa.................................................................................................................................................
Pump type General purpose Centrifuga! Self-priming
|
Volute |
Aluminum |
|
Impeller |
Aluminum |
|
Mechanical Seal (Pump case / impeller) |
Carbon/Ceramic |
|
Priming time |
80 sec. at 16.4 ft. |
|
Drive system |
Direct |
|
Discharge capacity |
32 gal./min. |
|
Suction port diameter |
1.0" NPT |
|
Discharge port diameter |
1.0" NPT |
|
Total head lift |
121 ft. |
Suction head lift
26 ft.
Máximum pressure
52 psi
N/A
13.4"x8.7"x11.6"
13 Ibs.
0.56 qt
0.9 hr
Solids handling
Dimensions (LxWxH)
Dry weight
Fuel Capacity
Run Time @ Max Discharge
BOMBA AUTOCEBANTE 1.5HP 1X1 HONDA GASOLINA 140LPM
TANQUE .65LT 2HR
| Alto | 29 CM |
|---|---|
| Largo | 32 CM |
| Ancho | 41 CM |
| Peso | 9.3 KG |
GARANTIA |
2 |
POTENCIA (HP) |
1.5HP |
Alimentacion |
GASOLINA |
LITROS X MINUTO |
140 |
ENTRADA/SALIDA |
1X1" |
MAXIMA SUCCION |
7 M |
ALTURA MAX. |
20 M |
TIPO |
AUTOCEBANTE |
PRESION MAX. |
51.6PSI |
POTENCIA (W) |
25 CM3 |
CATEGORIA |
F |
LINEA |
IVA00 |
MARCA |
HONDA |
